Overview

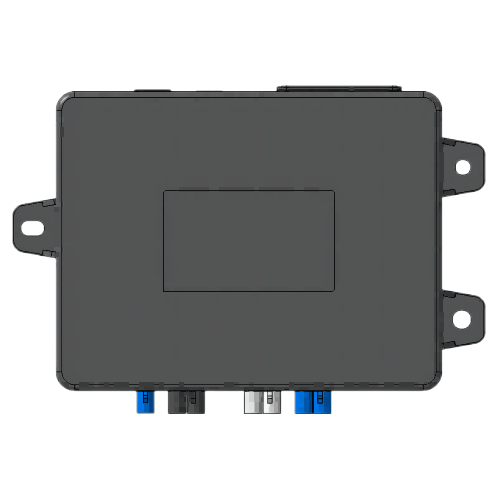

GT510

GT510 Series is an In-vehicle Router, with plenty of network interface such as  RJ45, Wi-Fi, and device support IPsec to set up secure VPN make the vehicle  becomes a fully operational office and command center,with the rugged and  heat dissipation design keep the device in good performance while working in industrial and vehicle application.

Highlights
Dual RJ45 Ethernet
Dual USB
Secure internet access
eSIM Optional
Support Multi-Constellation GNSS
LTE Cat.4 hotspot, high speed internet service
Built-in 3-axis G-sensor and 3-axis gyro
2.4 GHz and 5G Hz Wi-Fi Access
Rugged and heat dissipation design
Technical Specification
General Feature
* Dimension: 128 × 94 × 28mm
* Protection Grade: IP40(not waterproof/splash proof)
* Compatible SIM: NanoSIM/eSIM
* Weight: about 240g
Hardware Interface
* LAN port: 100BASE-TX/10BASE-Tx2 ports
* Antenna connector: SMAx2(main antenna, sub antenna)
* Expansion connector: USB connector with locking mechanism available for expansion(Device)
Network & Connectivity
* LTE FDD: B1,B3,B5,B7,B8,B20,B28
* WCDMA: B1,B8
* WLAN 802.11b/g/n/ac
* GNSS
Data Speed
* LTE-FDD: Cat 4 Downlink 150Mbps /Uplink 50Mbps
* WCDMA: HSPA+ Downlink 21.6Mbps /Uplink 5.76Mbps
Wi-Fi Function
* Standard: IEEE802.11 a/b/g/n/ac
* Compatible Frequency: 2.4GHz,5GHz(switching method)
* Maximum number of connected terminals: 10
* Number of SSIDs: 2
* Security
-- No encryption, WEP, WPA3-PSK
-- WPA2-PSK, WPA-PSK
-- WPA/WPA2-PSK, WPA2/WPA3-PSK
-- SSID stealth, privacy separator
-- SSID separator
-- MAC address filtering
Power Supply
* Voltage: 9-36V
* Battery: 110mAh Li-ion
Operating Environment
* Operating Temp: -20°C to 70°C
* Storage Temp: -40°C to 85°C
* Humidity: 5%~95% RH
Functions
* Communication carrier redundancy
* FOTA
* SMS transmission/reception
* Positioning
* Power saving
* DMZ, DDNS, heartbeat, periodic reset
* Dos/DDos attack protection
* Router Functions: NAT/NAPT, DHCP, packet filter, VPN pass-through, VPN termination
Certification
* JATE, TELEC, CE*, FCC*, Wi-Fi logo
